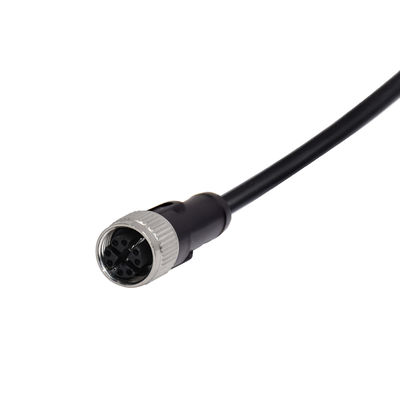

IP65 Electronics Wire Harness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | M12 X Code 8Pin Straight | Connector Gender | Male & Female |
|---|---|---|---|
| Application | Miniature Sensors Industrial Camera Electrical Bike | Standard | IEC61076-2-101 |
| Contact Pin Number | 8Pin （3,4,5,8,12pins Are Available） | Material | Copper，Zinc Alloy，PA66 Nylon，PVC |
| IP Rating | IP65/IP67 | Cable Size | 24AWG/0.25mm² PVC/PUR |
| Contact Resistance | ≤ 5 MΩ | Insulation Resistance | ≥100 MΩ |
| Rated Current | 1.5A | ||
| Highlight | IP65 Electronics Wire Harness,Motherboard Electronics Wire Harness,8Pin Motherboard Power Cable |
||
Product Description
Product Descriptions:
The M12 series features sensor and actuator connectors with locking thread for electronics automation, process control,
and commercial electronics.
We offer many different cable connectors, panel mount receptacles, field attachable/ installable connectors and various
accessories.
Our connectors have industry standard A/B/C/D/S/T/X cording, for both screw locking and quick-locking styles.
1.High degree of protection IP67/IP68, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times
mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders
Features:
- M12 Cable Cordsets,m12 to m12,Female to Male,Straight to Straight,8pin to 8pin
- thread locking mechanism, anti vibration locking design,12mm thread joint;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Appliance:
- Miniature sensors
- Industrial camera
- Electrical bike
- Packaging, Labeling & Logistic
- Factory automation and fieldbus module
Specifications:
Electrical Characteristics
- Rated current: 1.5 A
- Contacts resistance: ≤ 5 mΩ
- Insulation resistance: ≥100 MΩ
- Rated voltage: 30V
- Standard: IEC 61076-2-101
Mechanical Characteristics
- Coupling: thread locking
Environmental Characteristics
- Ambient temperature: -40°C ~ + 90°C
- IP rating: IP67
Materials:
| Part | Material | Finish | |
| Connector contacts | Brass | Gold | |
| Coupling nut/screw | Brass | Nickel | |
| Insert/ Housing | PBT | ------ | |
| Sealing | O Ring / Epoxy | ------ | |
Packaging Details:
1.Hard carton box with waterproof bag.
2.Individual part with transparent PE bag with label.
3.According to customer's demand.
Payment & Delivery:
Factory Information:
Dongguan Hexie New Energy Technology Co.,Ltd. was founded in 2009.
We mainly produce new energy vehicle wiring harness,connectors,battery holders;Multi-function mobile power bank, car emergency jump starter powerbank and intelligent jump starter cable,USB&HDMI cables,audio cables and other cables for digital products,specialty cables, PV cable etc.
Hexie New Energy Technology is a cost effective manufacturer with advanced equipments located inHumen, Dongguan.
We provide design, development, production and other comprehensive services, products are widely used in new energy vehicles, consumer electronics, industrial equipments, communications and OEMs. In every production link, we have advanced technology and strict control standards, can ensure the stability of each batch of products and high quality.The factory has passed ISO9001:2015,IATF16949:2016 and E484243 certifications to ensure high quality of products.
